Airflow Raised Floor/ Fan PanelTechnical Sector
FINECO airflow panel fits for bolted stringer system to become an integral component of the raised floor. The perforated panel delivers and controls the flow of cool underfloor air conditioning into room environments that are typically generating heat. When future changes are required, the perforated air flow panel can be easily re-located, as it is interchangeable with the other raised access floor panels. The perforated airflow panel is designed to deliver constant the air to space. The rate of airflow to the room depends on the pressure within the underfloor plenum, and can be easily adjusted when the perforated panel is added with a damper. The perforated panel is suitable for areas of normal traffic and medium loading request since it’s stronger and more stable structure.
Key Performance

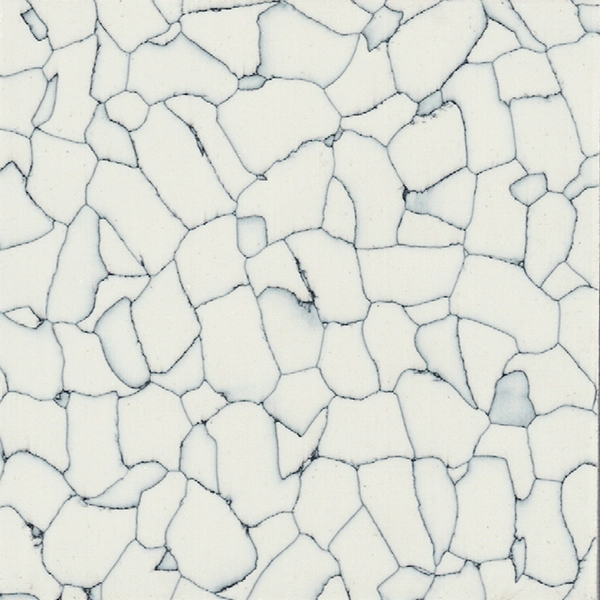

Protected from antistatic top finish tile, antistatic PVC trim on four sides and galvanized steel bottom sheet
Ventilation range from 16% ~ 65%, made of steel or aluminum with epoxy spray
High dimensional precision, strong loading ability, designed for advanced manufacturing facilities, data centers and other industrial applications
Being stable performance in humidity and temperature
High flexibility to adapt to a updating application, reusable in different locations
Non-combustible material , Class A fire proof rating
Directional airflow of air grille to provide more effective cooling
As the growing of high-density computer room, virtualization and cloud computing, cooling infrastructure in data center must catch up with higher request to provide more excellent resource efficiency to variable heating load. Airflow fan panel is able to blow the cold-blast air to cabinets angularly, almost eliminate the side stream to save the energy efficiently. Variable air volume of EC fan supply the air to heating load directly and respond timely according to the sensor monitoring device installed in cabinets. The assistance module provide the modified scheme to owner who have installed the raised floor to deal with investing vast fund to retrofit the ground facilities in the use of high-density cabinet.
FINECO provides a new concept in the design of raised floor to facing the challenge of introduction of the continuously developing of technology and infrastructure in data center. It involves in the use of extreme high density cabinet, variable change of heating load in cooling and economy of investment. The most important is that in-floor cooling solutions can be easily applied to the renovation of computer room facilities and new construction. So, FINECO provides a new perspective to solve the problem of cooling in data center.
